Redesigning the primary mirror (M1) of the CCam earth observation cubesat for additive manufacture. A low cost imaging system for cubesat's developed by the UKATC and RAL Space.

CCam Optomechanics section view

Optimised the design parameters for a mechanical performance similar to the original solid body design, whilst targeting a 60% mass reduction. This involved finite element analysis of the mirror’s surface deflection in the vertical axis under uniform pressure utilising Ntop a CAD and CAE software purpose built for 3D printed structures.

Diamond TPMS (triply periodic minimal surface) surface deformation in the vertical overlay plots and graphs

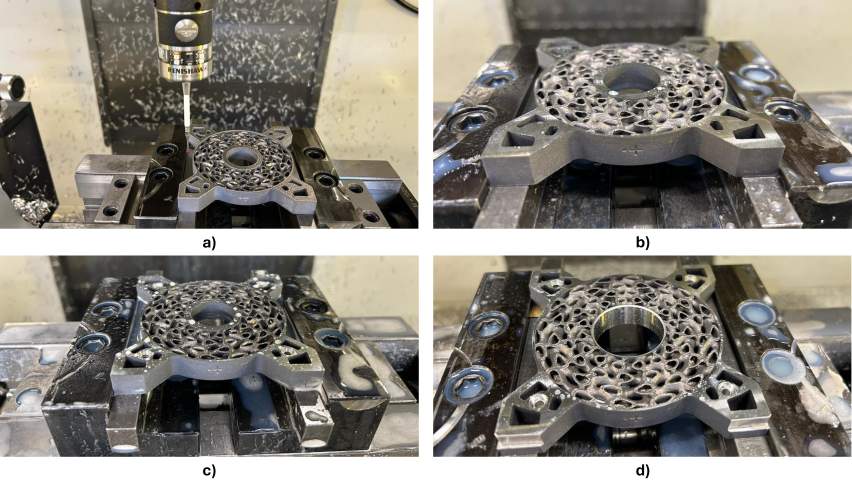

Machining steps performed on the mirror prototypes
